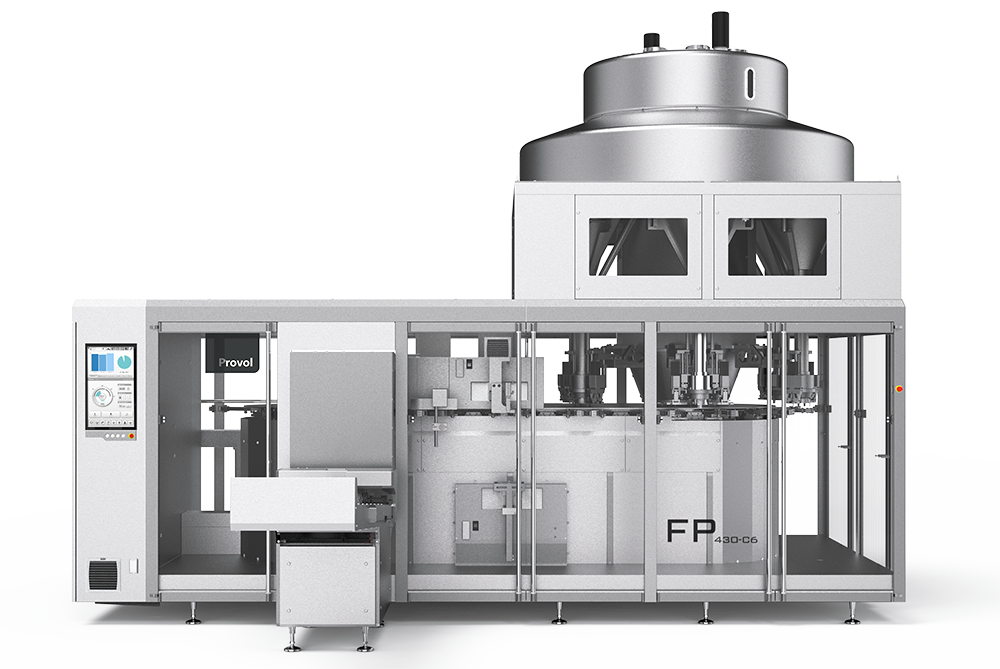

Flexible Packaging Machine
-
FP-430-C6
Multiple Functions, Stable Performance
- Stable performance - continuous motion mode, lower noise.
- Online weighing-little profit reaches the maximum, the return is huge.
- Decrease the use of packaging films
- -Waste Reduction
- The multifunctional packaging machine is suitable for packaging candies, sunflower seeds, peanuts, nuts, beans, potato chips, popcorn, almonds, dried fruits, vegetable salads, frozen foods, etc.
- High weighing accuracy
- Full automation
- High precision, high efficiency, no material collision
- Product packaging is diversified
-
Characteristics
- Production Efficiency
Continuous and stable production output
Full servo drive control, each axis movement is started on demand, which greatly reduces the power consumption when the machine is running.

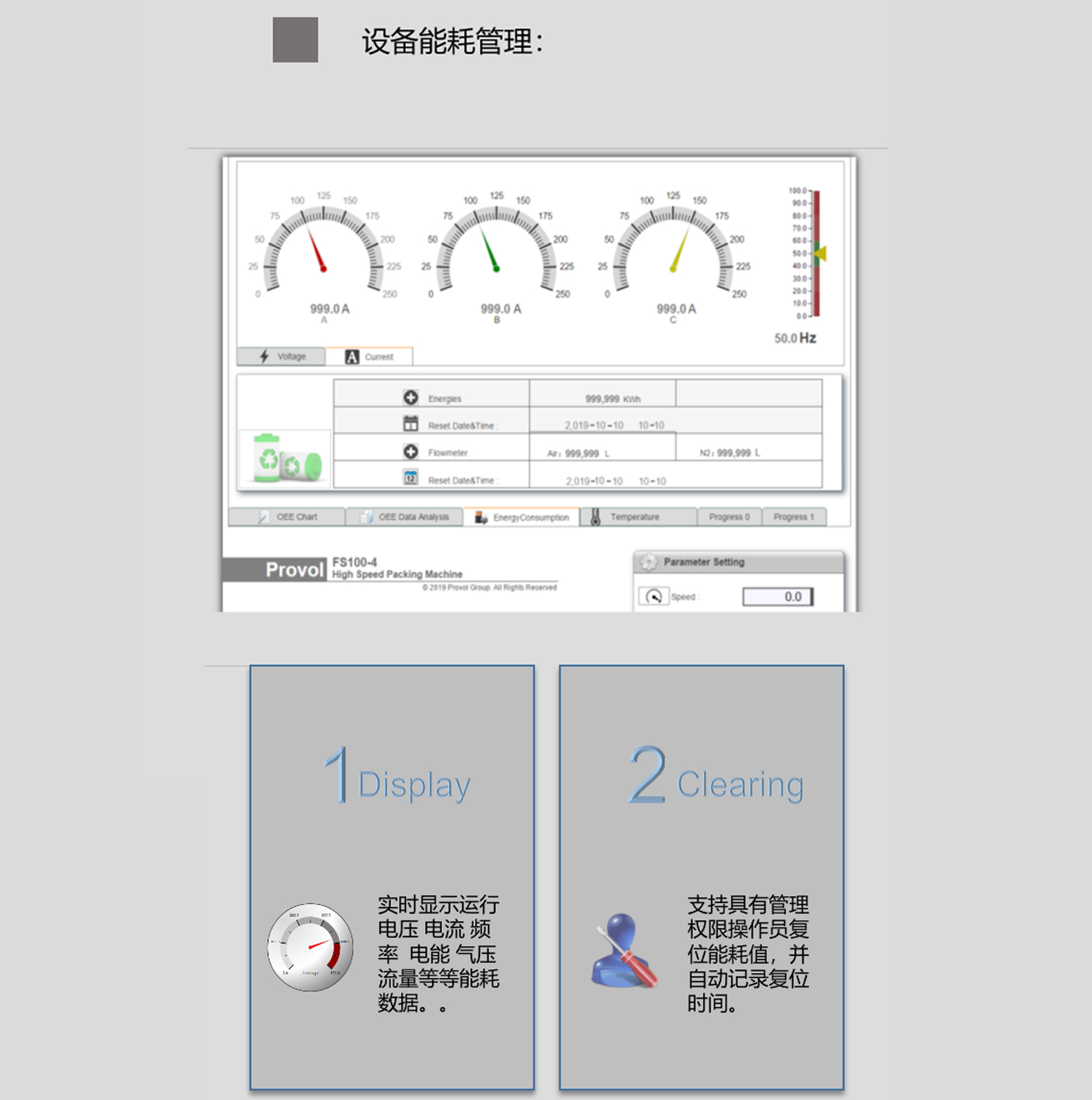

The touch screen will display the running status in real time, and monitor the energy consumption such as voltage, current, air pressure flow and so on, that will achieve the precise control. -
-
- Quick changeover
Free changeover for multiple SKU
Recipes design for production changeover, all of the parts for each changeover are clear at a glance, and changeover time is recorded in real time, which provides any possibility to continuously optimize the efficiency of production changeover.
-
-
- Product quality
Precise online weighing

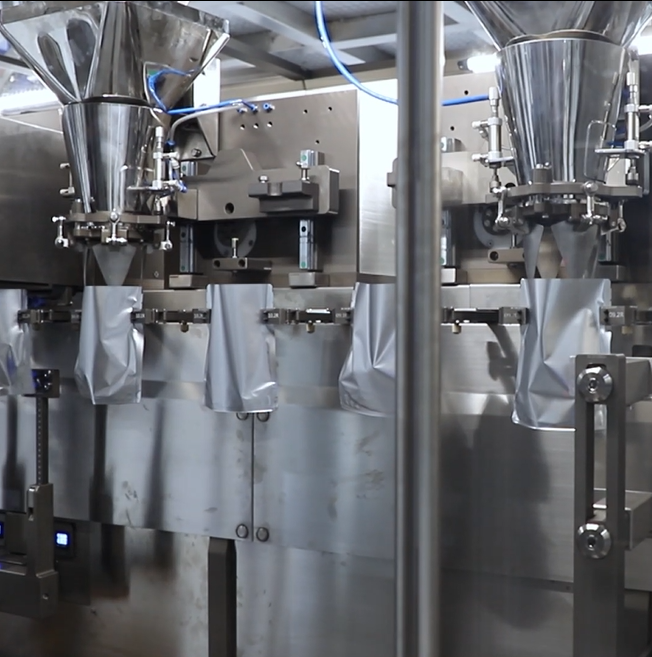

During the filling, the weighing can be completed in a short time through the weighing sensor and accurate algorithm, which ensures the real-time monitoring and feedback of the product weight. The filling accuracy is higher, and the material cost is greatly reduced.
-
-
- Easy to operate
Full Automation, Easier Operation.

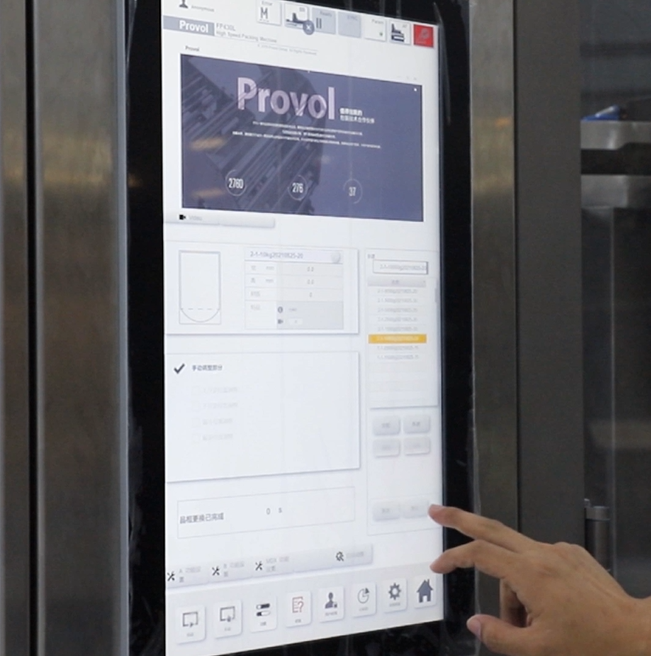

Multiple detection feedback functions such as bag loading, bag loading height and coding detection can more accurately monitor the OEE efficiency of the overall machine, and display it on the HMI in real time. The HMI adopts a new UI design concept, which can support multi-users browsing, display statistical production data and machine operating status.
-
-
- Cost saving
Groundbreaking/Innovative technology reduces energy consumption
Full servo drive control, each axis movement is started on demand, which greatly reduces the power consumption when the machine is running.
The touch screen will display the running status in real time, and monitor the energy consumption such as voltage, current, air pressure flow and so on, that will achieve the precise control. -
-
- Health and Safety
Lower noise levels, higher safety standards
The F series packaging machine is designed according to Provol hygienic design standard. High sealing feature of the machine driving part, no hygienic dead corner for the exposed mechanical assemblies, and the air tube wiring is hidden into the structure, that is easy to clean.
For some parts that need to be removed to clean and replace such as the teflon cloth of sealing jaws, conveyor belt, etc., which are quickly cleaned and no tools needed. -
-
- Space usage
Flexible space due to functional integration

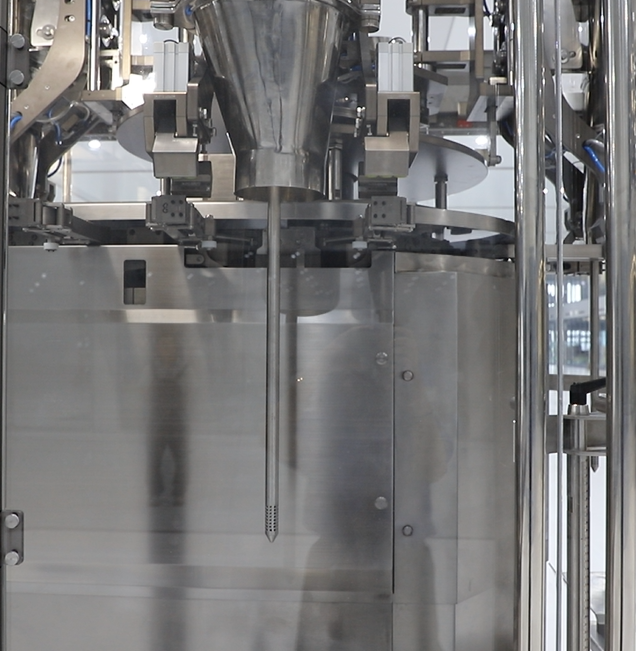

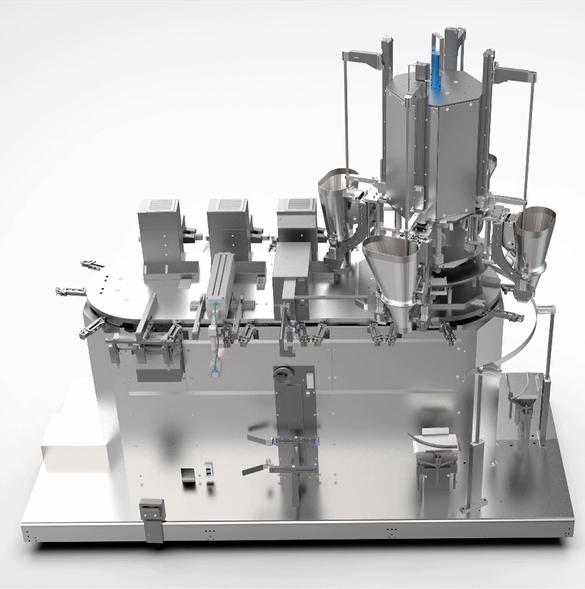

Rotary cycle chain structure, using rotating space for filling the products.
-
-
Industries
-
-
-
Granular
-
-
-
-
Liquid
-
-
-
-
Powdery
-
-
-
-
Mixed
-
Industries
Bag-Bottom vibrating makes the filling process more smooth and the materials more even.
High speed zipper opening device is an optional and realize high-speed packaging even for zippered bags.
The vacuum system is equipped with a filtering device, which can be quickly cleaned and replaced, so that the equipment maintenance is simpler.
The bag suppling system controlled by multiple servo motors can realize high-speed production regardless of packaging type and material.
Industries
It can be matched with laser, inkjet, heat transfer and other types of coding, and can be matched with rapidly adjusted mounting brackets.

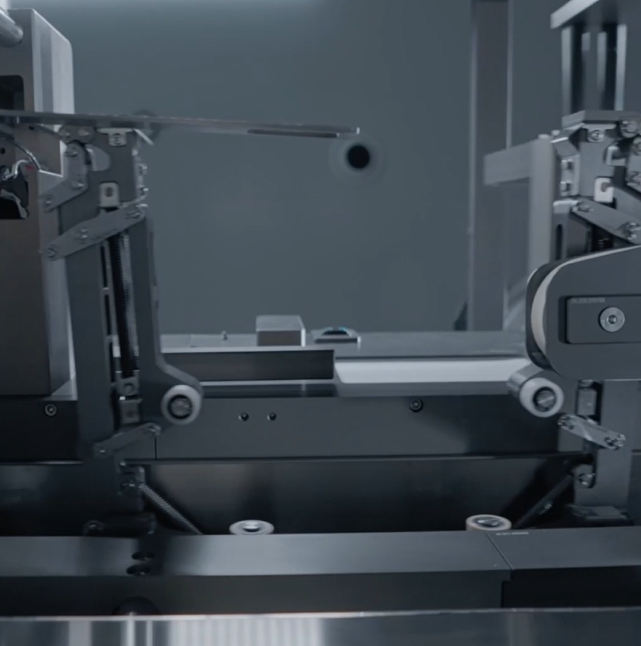

Automatic adjustment seal jaws position and pouch grippers adjustment,Make your format change in a very short time.

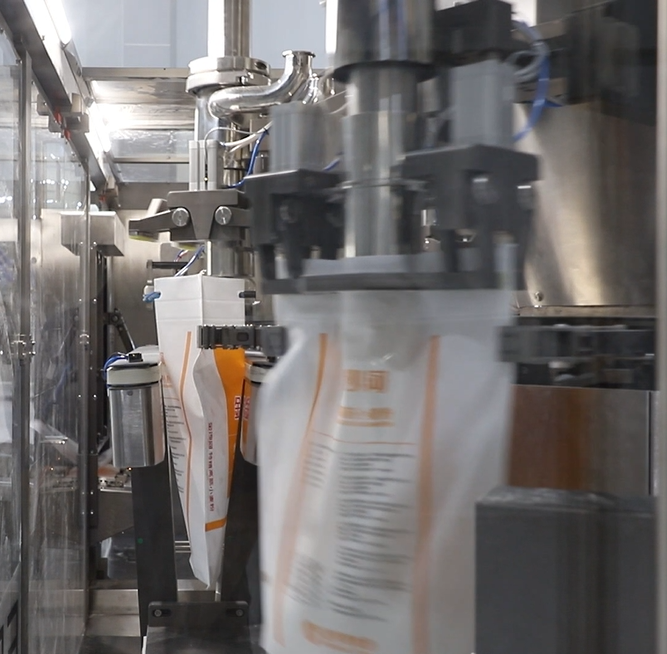

Pouch opening system via vacuum and mechanical device,Ensure the success rate of bag opening.

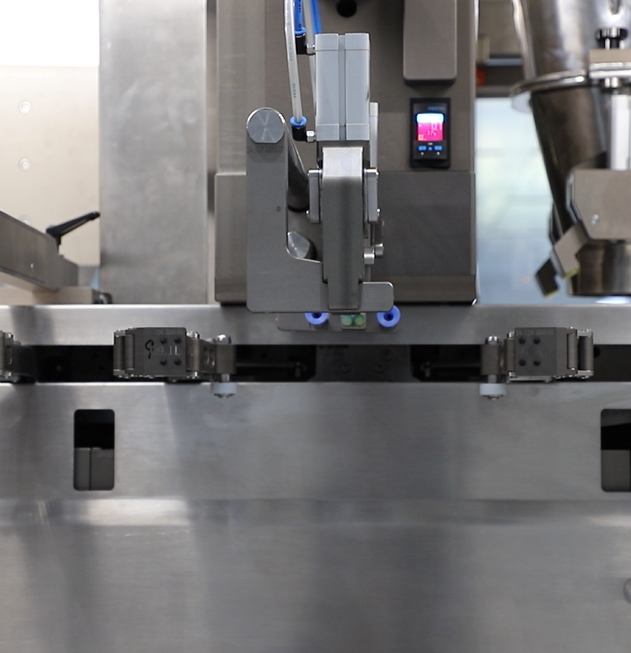

The level and height of the packaging bag can be detected online, so that the quality and appearance of the final product can be more guaranteed.
Industries
The bag suppling system controlled by multiple servo motors can realize high-speed production regardless of packaging type and material.
The vacuum system is equipped with a filtering device, which can be quickly cleaned and replaced, so that the equipment maintenance is simpler.
High speed zipper opening device is an optional and realize high-speed packaging even for zippered bags.
The machine reseves mulitiple sealing stations ,ensures the quality & the appearance
Industries
The bag suppling system controlled by multiple servo motors can realize high-speed production regardless of packaging type and material.
It can be matched with laser, inkjet, heat transfer and other types of coding, and can be matched with rapidly adjusted mounting brackets.
Pouch opening system via vacuum and mechanical device,Ensure the success rate of bag opening.
Bag-Bottom vibrating makes the filling process more smooth and the materials more even.

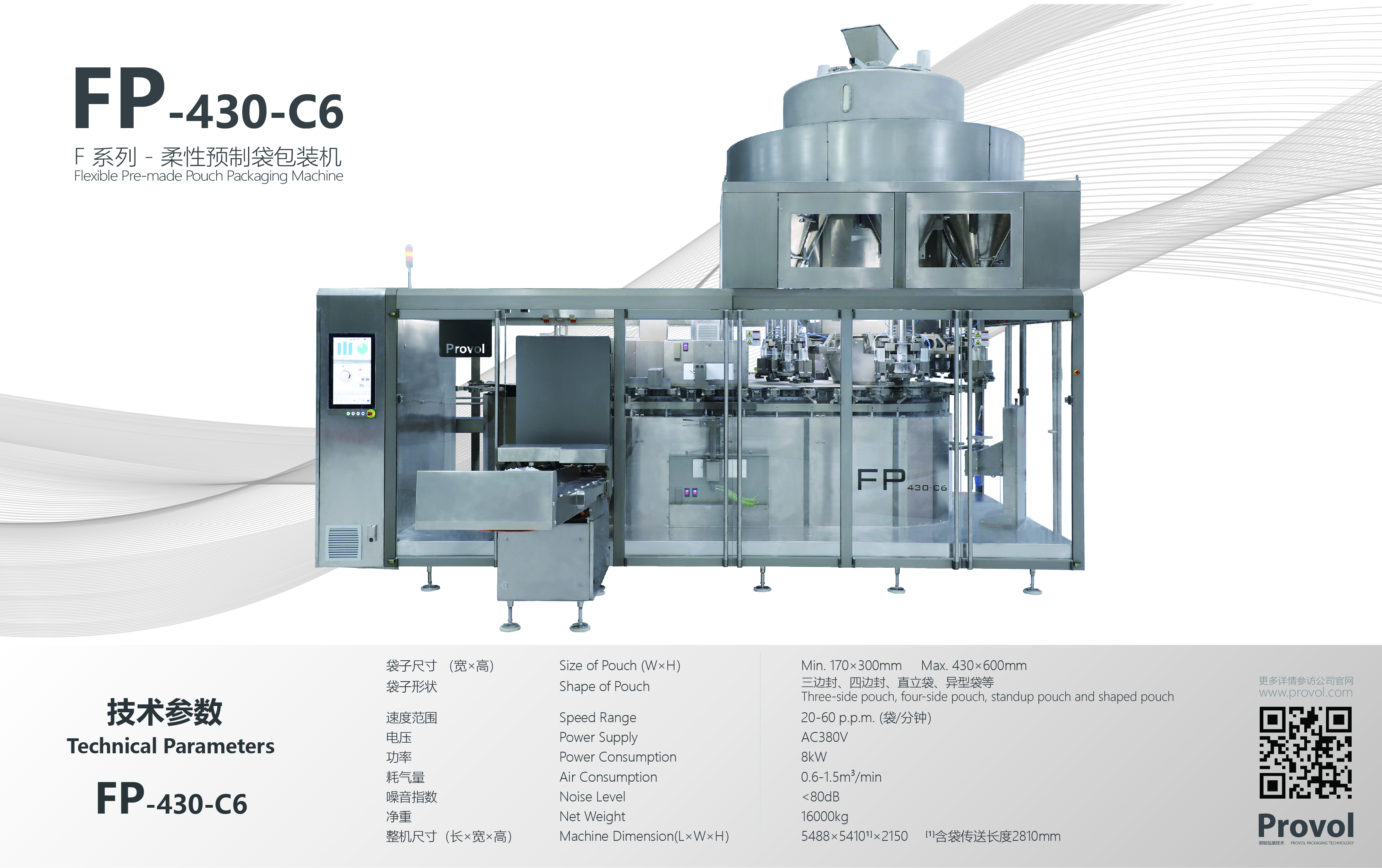

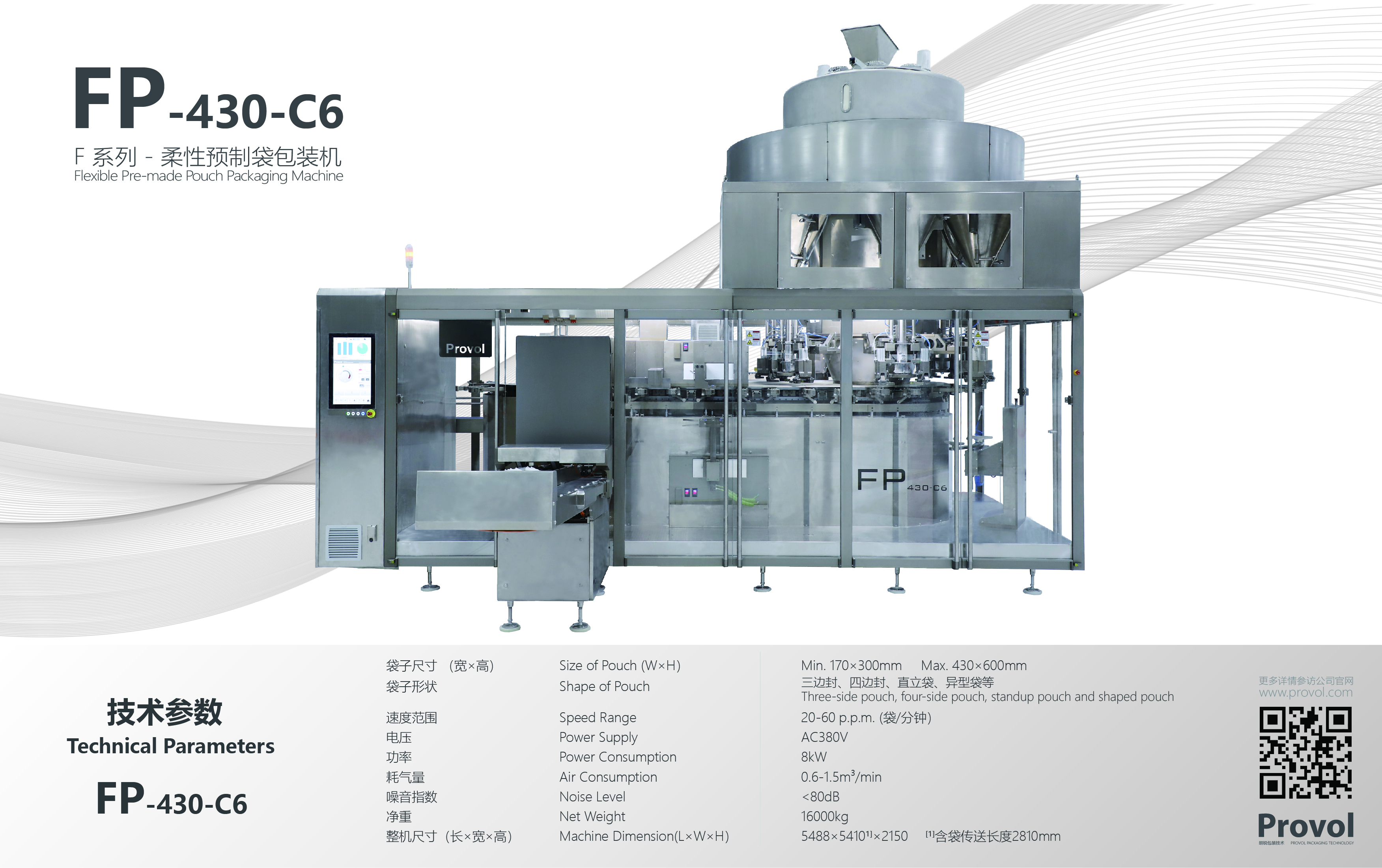

Detailed parameters
-
- Filling Materials
- Solid, Fluid, Solid+Fluid, Powder
-
- Min. Pouch Size(Width x Height x Bottom)(mm)
- 165 x 200 x (25 x 2)
-
- Max. Pouch Size(Width x Height x Bottom)(mm)
- 430 x 600 x (75 x 2)
-
- Speed Range(pouch/min.)
- 20-60 （Actual speed depends on the properties of specific filling materials.）
-
- Voltage
- AC380V
-
- Frequency(Hertz)
- 50HZ/60HZ
-
- Power
- 8kW
-
- Air Consumption(m³/min)
- 0.6-1.5
-
- Noise Index
- <80dB
-
- Machine Dimension(L x W x H)（mm）
- 5,780 x 2,820 x 2,150
-
- Machine Max Dimension(L x W x H)（mm）
- 5,780 x 5,409 x 2,150
More equipment
-
-
-

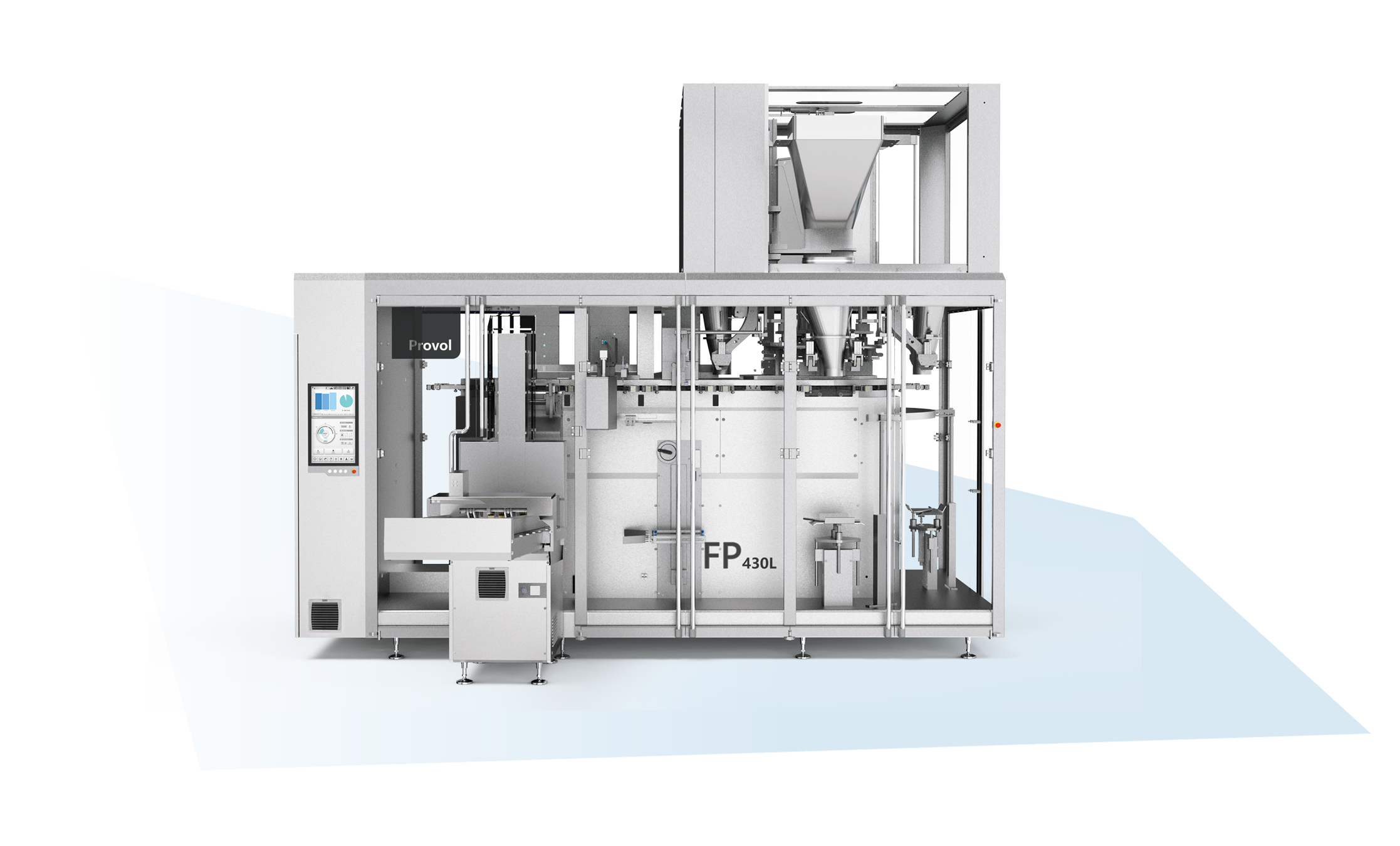

FP-430L-I1
The speed range of flexible high-speed packaging machine FP430L-I1 is 10-40 bpm.
The pouch sizes range: min size as 170(W)×200(H)mm, max size as 430(W)×1000(H)mm.
Wide format range of the machine FP430L-I1 is from min 165mm to max 430mm, the max bag height can be up to 1 meter.
-
-
-
-

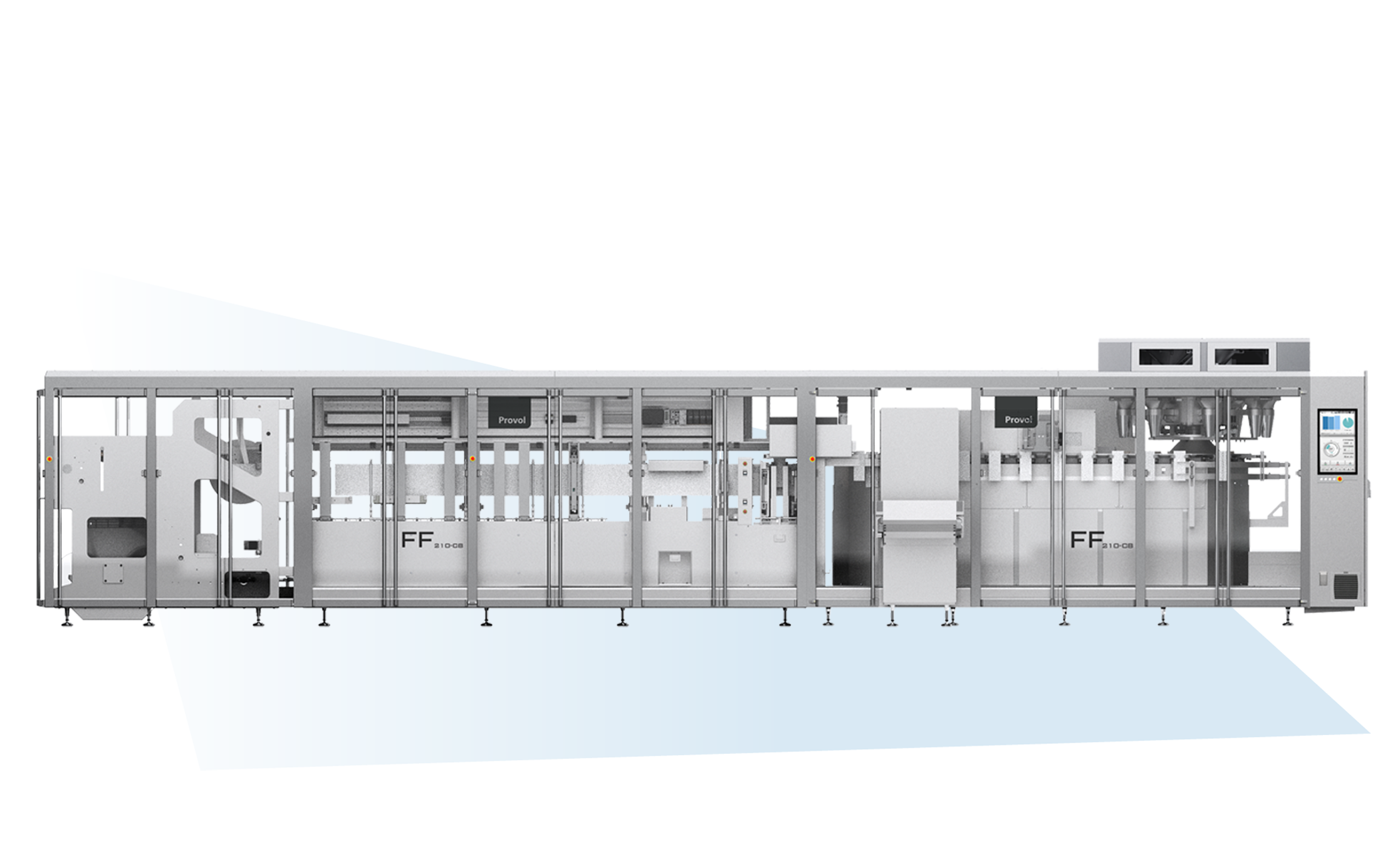

FF-210-C8
